Super Lowest Price Solar LED Street Light Price - 80W Solar Street Light For Road – Xintong Detail:

Product Display

Product Description

1649826475(1)

Overview

The Solar LED street lights are using Latest N Series

High effiffifficacy LED Luminaire, providing excellent lumen output, long-lasƟng stability and splendid sight.

Combined with Lithium baƩery and Mono Solar Panels to ensure the long life and high effiffifficacy of system.

Provide 3 years warranty on whole system.

Color OpƟons

1649827797(1)

HIGH EFFICACY LED CHIPS

1649834553(1)_副本

SELF-CLEANING DESIGN

1649834599(1)_副本

SMART DESIGN

WATERPROOF ALUMINUM BOX WITH LITHIUM BATTERY AND CHARGE CONTROLLER

1649835226(1)
Main Features
▪ Adopts MPPT charging method,which increases the uƟlizaƟon of solar panel.
▪ Lithium baƩery low temperature charging protecƟon, which effffecƟvely protects the baƩery .
▪ Intelligent compuƟng, detecƟng the raƟo of charge and discharge, to achieve the lights stay on 365 days.
▪ If no charge within 24 hours, the system automaƟcally goes into hibernaƟon, easy to transport long-distance,
long-term storage to avoid causing baƩery bursts.
▪ Realize Bluetooth communicaƟon between the mobile phone and the system, users can customize the lighƟng
mode and view the system operaƟon in real Ɵme.
▪ Integrated BaƩery Management System (BMS) which monitors the health, charging and discharging of the
baƩery pack. This safeguards the cells so that they are not over charged or discharged, maximising their lifeƟme.
▪ Overheat protecƟon funcƟon, when the controller reaches a certain temperature, it will decrease or close the load.
▪ Working status indicaƟon, easy to maintain.
HIGH EFFICACY SOLAR PANEL
1649835532(1)
OPTIONAL ACCESSORIES
1649835567(1)
1649835822

Electriccal & Photometric

Model

Power

Luminaire eﬃcacy (+/- 5%)

Lumen Output (+/- 5%)

Solar Panel Spec.

Battery Spec. (Lithium)

Constant worktime at 100% power

Charge Time

Working Environment

Storage Temperature

Rating

CRI

Material

XT-LD20N

20W

175 /180 lm /w

3500 /3600 lm

60W Monocrystal

66AH /3.2V

8.5 Hours

5 Hours

0 ºC ～ +60 ºC 10%～90%RH

-40 ºC ～ +50 ºC

IP66 IK10

>70

Housing:
Die-cast aluminum
Lens:
PC

XT-LD30N

30W

170 /175 lm /w

5100 /5250 lm

80W Monocrystal

93AH /3.2V

8 Hours

5 Hours

XT-LD40N

40W

165 /170 lm /w

6600 /6800 lm

120W Monocrystal

50AH /12.8V

12.5 Hours

5 Hours

XT-LD50N

50W

160 /165 lm /w

8000 /8250 lm

150W Monocrystal

50AH /12.8V

10 Hours

5 Hours

Working Environment & Packing

Model	Product Dimensions(Lamp /Solar Panel /Battery) (mm)	Carton Size(Lamp /Solar Panel /Battery) (mm)	N.W(Lamp /Solar Panel /Battery) (kg)	G.W(Lamp /Solar Panel /Battery) (kg)
XT-LD20N	28416668 /670620450640 /220113*77	290180100 /715635110 /350100130	1.0 /4.3 /2.66	1.53 /7.0 /4.0
XT-LD30N	28416668 /670790450640/220113*77	290180100 /805715110 /350100130	1.0 /5.6 /3.54	1.53 /8.6 /5.5
XT-LD40N	28416668 /6701095450640 /320195*95	290180100 /1110715110 /400230270	1.0 /7.6 /6.86	1.53 /12.0 /9.0
XT-LD50N	28416668 /6701330450640 /320195*95	290180100 /1345715110/400230270	1.0 /9.1 /6.86	1.53 /15.0/ 9.0

Note: Above data of weight are all typical values.

Optics

1649831334(1)_副本_副本
1649828900(1)
1649828931(1)

Solar Street Light System

1649828456(1)

Customized service

Due to each city has its own sunshine condiƟon, and customers have difffferent working hours
and rainy days on request.
If you want to know more exact confifiguraƟon, please contact us for below quesƟons:
1. What is the geographical locaƟon your solar LED street lighƟng system will be installed?
2. How many hours per night the LED street light works?
3. How many days to backup in case of conƟnuous rainy days?
4. Do you need dimming the LED street light (during the offff-peak hours)?
5. Do you have any other requirements?

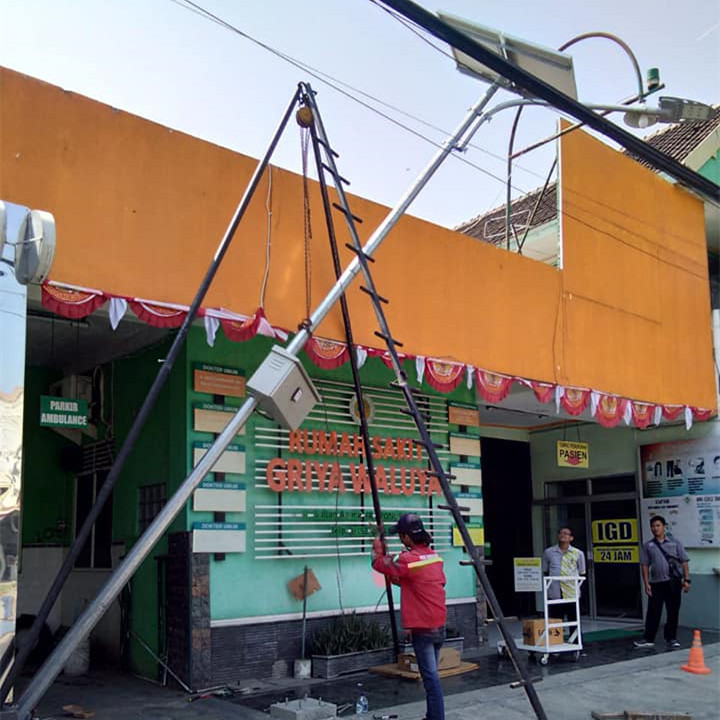

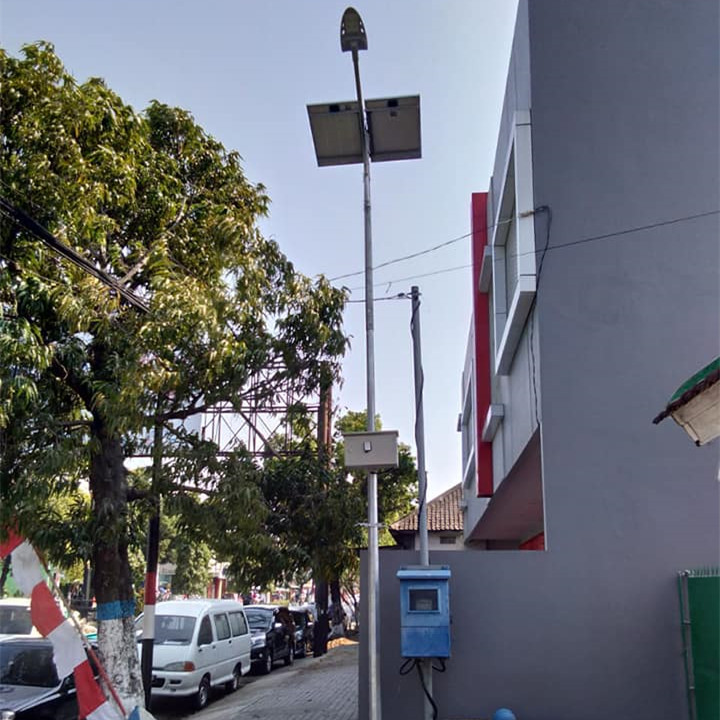

Product detail pictures:
