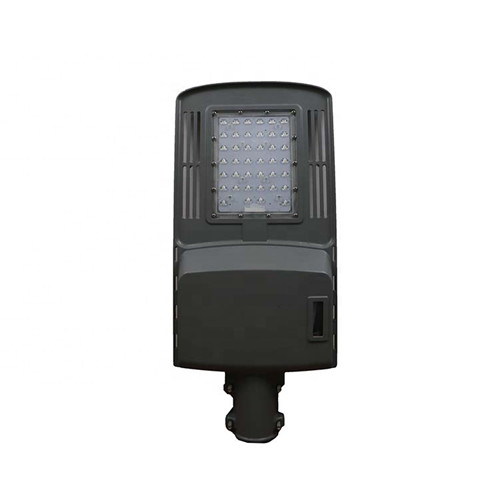

All In One Integrated LED Solar Street Light
Parameters
Product Display
Efficiency＞20% Solar Panel
►Type:Mono.PV module
►High efficency:＞20%
►25 years warranty
Microwave Sensor
►On-off Switch design
Extreme Brightness
►Lens light distribution
►Light refracts in the lens to increase brightness
►Energy efficient
Die-cast Aluminum Body
►Strong antioxidant capacity
►High hardness, long life
►IP65 waterproof

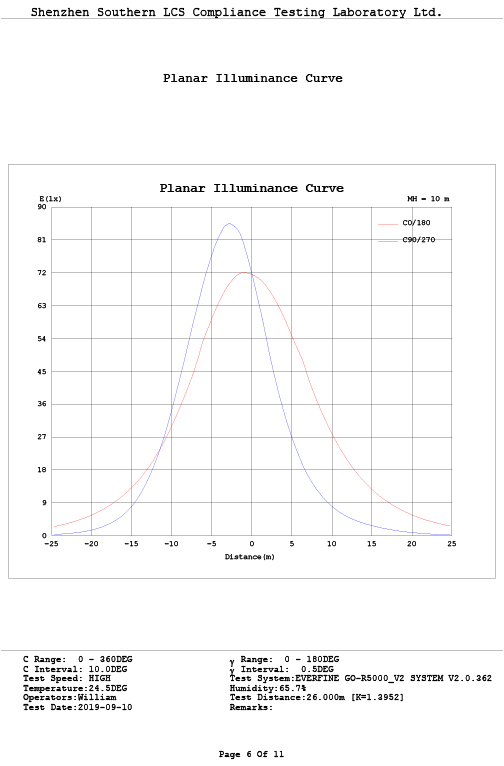

Integrated Solar Lamp- IEC Report
Application
Integrated solar street light with Lithium Phosphate battery, solar panel and charger built into the luminaire. Independently tilt-able LED source and pole mounting bracket allows light beam to focus on road, and solar panel towards the sun. Microwave based motion sensor for optimizing battery autonomy.

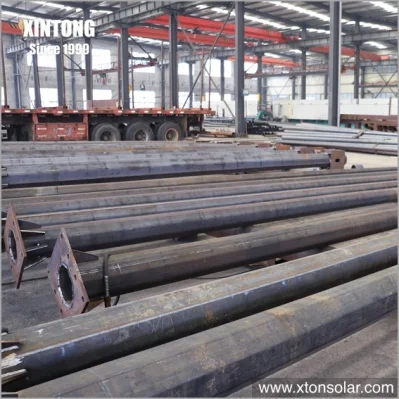

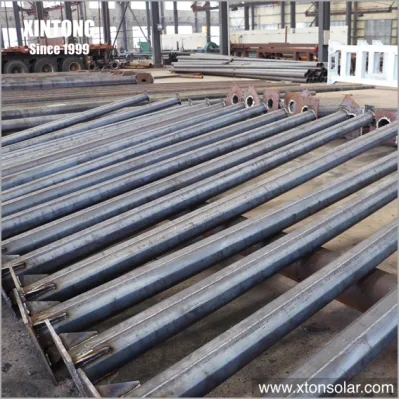

Production Process
Our Service Process
1.Understand customers' overall street lamp solution requirements, collect more detailed information about intersection types, street lamp spacing, application scenarios and so on
2. On-site survey, remote video survey or corresponding on-site photos provided by the customer
3. Design drawings (including floor plans, effect drawings, construction drawings), and determine the design plan
4. Equipment customized production
Project Cases
40W
50W
80W
100W
Installation Scene
America
Cambodia
Indonesia
Philippines
| LED | 30WBridgelux chips3030（Life time 100000hours） | ||
| Lumen(LM) | 170LM/W | ||
| Colour Tempreture | 6000K ~6500K（3000K-7000K can customize） | ||
| LifePO4 Battery | 300WH 12.8V | ||
| Solar Panel | 18V50W Imported High Efficiency Monocrystalline Silicon | ||
| Install Pole diameter | 60-65mm | ||
| Mounting Height | 6~7m （Suggest install between space20-25m） | ||
| Solar Charging Time | 6 hours by bright sunlight | ||
| Cloudy/Rainy days | 12 Cloudy/Rainy days | ||
| Material | High Class Aluminum（anodic oxidation treatment） | ||
| Product Size | 820*385*180mm | ||
| LED Lamp | 80PCS | ||
| Motion sensor | Yes（Microwave Sensor） | ||
| Remote Control | Yes（1pc remote control per lot） | ||
| Waterproof | IP65 | ||
| Working Tempreture | -25℃ to 65℃ | ||
| Certificates | CE、ROHS、IP65 | ||
| Warranty | 3Years |
| LED | 40WBridgelux chips3030（Life time 100000hours） | ||
| Lumen(LM) | 170LM/W | ||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||
| LifePO4 Battery | 310WH 12.8V | ||
| Solar Panel | 18V65WImported High Efficiency Monocrystalline Silicon | ||
| Install Pole diameter | 60-65mm | ||
| Mounting Height | 7~8m （Suggest install between space25-30m） | ||
| Solar Charging Time | 6 hours by bright sunlight | ||
| Cloudy/Rainy days | 12 Cloudy/Rainy days | ||
| Material | High Class Aluminum（anodic oxidation treatment） | ||
| Product Size | 960*385*180mm | ||
| LED Lamp | 80PCS | ||
| Motion sensor | Yes（Microwave Sensor） | ||
| Remote Control | Yes（1pc remote control per lot） | ||
| Waterproof | IP65 | ||
| Working Tempreture | -25℃ to 65℃ | ||
| Certificates | CE、ROHS、IP65 | ||
| Warranty | 3Years |
| LED | 50WBridgelux chips3030（Life time 100000hours） | ||
| Lumen(LM) | 170LM/W | ||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||
| LifePO4 Battery | 400WH 12.8V | ||
| Solar Panel | 18V70WImported High Efficiency Monocrystalline Silicon | ||
| Install Pole diameter | 60-65mm | ||
| Mounting Height | 7~9m （Suggest install between space20-30m） | ||
| Solar Charging Time | 6 hours by bright sunlight | ||
| Cloudy/Rainy days | 12 Cloudy/Rainy days | ||
| Material | High Class Aluminum（anodic oxidation treatment） | ||
| Product Size | 1190*385*180mm | ||
| LED Lamp | 160PCS | ||
| Motion sensor | Yes（Macrowave Sensor） | ||
| Remote Control | Yes（1pc remote control per lot） | ||
| Waterproof | IP65 | ||
| Working Tempreture | -25℃ to 65℃ | ||
| Certificates | CE、ROHS、IP65 | ||
| Warranty | 3Years |
| LED | 60WBridgelux chips3030（Life time 100000hours） | ||
| Lumen(LM) | 170LM/W | ||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||
| LifePO4 Battery | 460WH 12.8V | ||
| Solar Panel | 18V80WImported High Efficiency Monocrystalline Silicon | ||
| Install Pole diameter | 60-65mm | ||
| Mounting Height | 7~9m （Suggest install between space20-30m） | ||
| Solar Charging Time | 6 hours by bright sunlight | ||
| Cloudy/Rainy days | 12 Cloudy/Rainy days | ||
| Material | High Class Aluminum（anodic oxidation treatment） | ||
| Product Size | 1190*385*180mm | ||
| LED Lamp | 160PCS | ||
| Motion sensor | Yes（Microwave Sensor） | ||
| Remote Control | Yes（1pc remote control per lot） | ||
| Waterproof | IP65 | ||
| Working Tempreture | -25℃ to 65℃ | ||
| Certificates | CE、ROHS、IP65 | ||
| Warranty | 3Years |
| LED | 80WBridgelux chips3030（Life time 100000hours） | ||
| Lumen(LM) | 170LM/W | ||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||
| LifePO4 Battery | 630WH 12.8V | ||
| Solar Panel | 18V100WImported High Efficiency Monocrystalline Silicon | ||
| Install Pole diameter | 70-76mm | ||
| Mounting Height | 8~10m （Suggest install between space25-35m） | ||
| Solar Charging Time | 6 hours by bright sunlight | ||
| Cloudy/Rainy days | 12 Cloudy/Rainy days | ||
| Material | High Class Aluminum（anodic oxidation treatment） | ||
| Product Size | 1630*385*55mm（LED lamp）585*125*320m（Brackets） | ||
| LED Lamp | 160PCS | ||
| Motion sensor | Yes（Microwave Sensor） | ||
| Remote Control | Yes（1pc remote control per lot） | ||
| Waterproof | IP65 | ||
| Working Tempreture | -25℃ to 65℃ | ||
| Certificates | CE、ROHS、IP65 | ||
| Warranty | 3Years |
| LED | 100WBridgelux chips3030（Life time 100000hours） | ||
| Lumen(LM) | 170LM/W | ||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||
| LifePO4 Battery | 700WH 12.8V | ||
| Solar Panel | 18V130WImported High Efficiency Monocrystalline Silicon | ||
| Install Pole diameter | 70-76mm | ||
| Mounting Height | 9~12m （Suggest install between space30-40m） | ||
| Solar Charging Time | 6 hours by bright sunlight | ||
| Cloudy/Rainy days | 12 Cloudy/Rainy days | ||
| Material | High Class Aluminum（anodic oxidation treatment） | ||
| Product Size | 1950*385*55mm（LED lamp）585*125*320m（Brackets） | ||
| LED Lamp | 240PCS | ||
| Motion sensor | Yes（Microwave Sensor） | ||
| Remote Control | Yes（1pc remote control per lot） | ||
| Waterproof | IP65 | ||
| Working Tempreture | -25℃ to 65℃ | ||
| Certificates | CE、ROHS、IP65 | ||
| Warranty | 3Years |
| LED | 120WBridgelux chips3030（Life time 100000hours） | ||
| Lumen(LM) | 170LM/W | ||
| Colour Tempreture | 6000K ~6500K（it can be customized） | ||
| LifePO4 Battery | 800WH 12.8V | ||
| Solar Panel | 18V140WImported High Efficiency Monocrystalline Silicon | ||
| Install Pole diameter | 70-76mm | ||
| Mounting Height | 9~12m （Suggest install between space30-40m） | ||
| Solar Charging Time | 6 hours by bright sunlight | ||
| Cloudy/Rainy days | 12 Cloudy/Rainy days | ||
| Material | High Class Aluminum（anodic oxidation treatment） | ||
| Product Size | 1950*385*55mm（LED lamp）585*125*320m（Brackets） | ||
| LED Lamp | 240PCS | ||
| Motion sensor | Yes（Microwave Sensor） | ||
| Remote Control | Yes（1pc remote control per lot） | ||
| Waterproof | IP65 | ||
| Working Tempreture | -25℃ to 65℃ | ||
| Certificates | CE、ROHS、IP65 | ||
| Warranty | 3Years |
